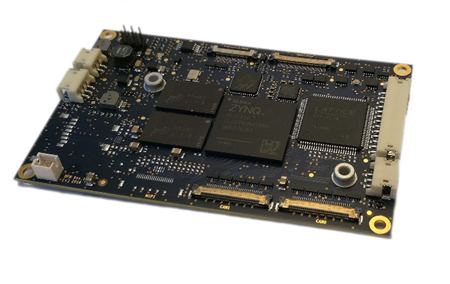

DFM (Dual-head FCB Interface Module)

Embedded processing

The DFM is a small form factor video processing module to build embedded vision solutions utilizing two cameras. This makes it an ideal solution for stereoscopic imaging or sensor fusion.



Maximized flexibility

The DFM module utilizes a powerful video processor with 3D and 4K x 2K support. A broad range of system interfaces is available to offer maximum flexibility to the user for system integration. Moreover a board-to-board interface allows system integration on a motherboard.



Software programmable

An onboard ARM-based processor is open to the user to integrating DSP functionality for image fusion, stereoscopic measurement, OSD generation, file management systems and many more.



Features

  • Supports 2 camera inputs for sensor fusion
  • 4K (UHD) ready
  • Support for 3D stereoscopic imaging
  • Onboard ARM-Core with Linux OS
  • Board-to-Board connector for easy system integration
  • HDMI; USB2.0 and Ethernet
  • MIPI and USB3.0 optional
