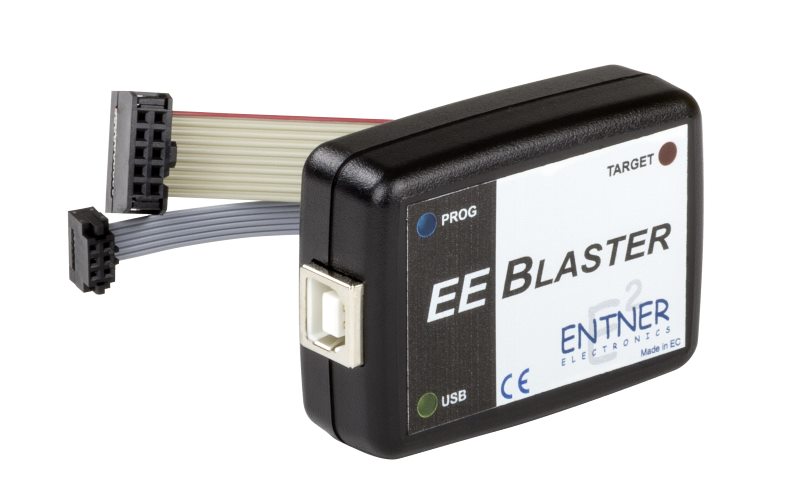

EEBlaster
Low cost USB JTAG-progamming tool for ALTERA® FPGAs. Can be used as a replacement for the USB-Blaster. ORDER NOW
Main features
- Supports programming of ALTERA®-FPGAs
- Convenient indicator-LEDs for USB- and target-power
- New small footprint 6pos. connector (2mm pitch, 24mm² area) and standard 10pos. connector (2.54mm pitch, 64.5mm² area)
- Improved signal integrity
-
Fully compatible with ALTERA® tool-chain (Quartus II® and Nios II®-IDE), supports JTAG- and AS-mode
- Also supports Vista and Windows 7 64bit versions
- Mature 5V-devices (e.g. MAX7000®) not supported
- Robust design, 2 years warranty
10pos. Connector Pinout (2.54mm pitch)
| AS | JTAG | 10pos. | JTAG | AS | |
| DCLK | TCK | 1 | 2 | GND | GND |
| CONF_DONE | TDO | 3 | 4 | Vtarget | Vtarget |
| nCONFIG | TMS | 5 | 6 | unused | nCE |
| DATAOUT | unused | 7 | 8 | unused | nCS |
| ASDI | TDI | 9 | 10 | GND | GND |
(This is the pinout-recommendation from the FPGA-datasheets.)
Vtarget may be in the range from 1.2V to 3.6V.
6pos. Connector Pinout (2mm pitch)
| JTAG | 6pos. | JTAG | |
| TCK | 1 | 2 | GND |
| TDO | 3 | 4 | TDI |
| TMS | 5 | 6 | Vtarget |
Vtarget may be in the range from 1.2V to 3.6V.
Pricing
1 pcs.: EUR 59,- (excl. VAT and shipping)
Shipment Costs: see in below order form
Order EEBlaster
Payment Terms
European Companies: 8 days net
International Companies: payment in advance
Non-commercial (private): payment in advance
Our general terms and conditions do apply.
